Wire Mesh Belt Design Guide and Engineers Reference
Practical Guidance for Specifying Wire Mesh Conveyor Belting
Download the Wire Mesh Belt Design Guide for practical information on woven wire conveyor belting, specialty belts, materials sprockets and system design considerations.
This engineer’s reference is built for teams specifying conveyors for demanding thermal sanitary and process driven applications where airflow drainage temperature resistance, positive drive product support and cleanability matter.
Use the guide to compare belt constructions, understand key specification details and prepare more complete design requirements for your application.
Get the Design Guide
Fill out the form to receive your Wire Mesh Belt Design Guide download link.
A Wire Mesh Belt representative may contact you to discuss your conveyor belting requirements.

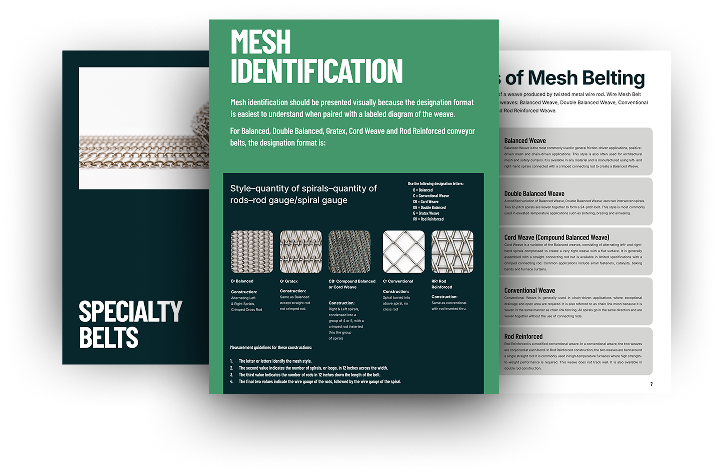

What Is Included in the Guide
The Wire Mesh Belt Design Guide gives engineers a single reference for matching belt construction to operating conditions. Topics include mesh selection, belt measurement, edge options, materials drive components and design factors that affect performance.
Mesh Belting Styles
Review common wire mesh belt constructions including Balanced Weave, Double Balanced Weave, Conventional Weave, Cord Weave and Rod Reinforced belting. Learn how mesh style pitch and wire gauge affect product support tracking, airflow and drainage.
Identification Sizing and Measurement
Use the guide to understand mesh designation, belt width, belt length, spiral count, rod count, wire gauge and chain center measurements. Clear measurement guidance helps teams gather accurate information for replacement belts or new conveyor designs.
Edge Options Chain Drive and Belt Additions
Compare edge constructions, chain drive styles and belt additions used for product retention containment and positive drive. The guide includes information on welded edges truss edges turned up edges flights wickets support bars and chain driven constructions.
Specialty Belts

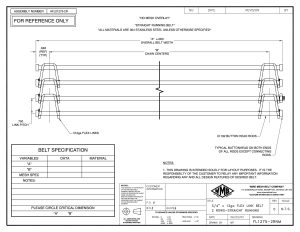

Learn about Flat Flex Ladder Link Flat Wire and Flex Link belting for applications that require open construction cleanability, positive sprocket drive, product support or radius capability.
Materials Strength and System Design
Evaluate materials operating temperature, strength factors, sprocket selection, belt tension drive, tension counter, tension belt speed, drive configuration and pulley or roller configuration.
Why Download the Wire Mesh Belt Design Guide
Wire mesh conveyor belting is selected when a process requires controlled open area exposure to air gas or liquid flow temperature resistance cleanability positive drive capability or specialized product handling.
The guide helps engineers select belting for ovens, quench tanks, washers, fryers, freezers, cooling conveyors and spiral conveyors. It also explains how open area drainage, cleanability, temperature capability, product size, load sanitation and drive method influence belt selection.
Use this reference to organize application requirements before selecting a belt style or
Built for Demanding Process Conveying Applications
Wire Mesh Belt supports manufacturers across industries that depend on reliable metal conveyor belting. Applications include food processing, baking, glass annealing, wood veneer, powder metal heat treating, washing, drying, cooling and freezing.
Because every application has its own product size load temperature range support method and drive requirements, belt selection should be based on the operating conditions of the complete system. The Design Guide helps engineers organize those requirements and start the specification process with better information.
Need Help Selecting a Wire Mesh Belt
The Design Guide is a practical reference, but final belt selection should be reviewed against the specific product load, operating temperature, belt speed and support conditions involved.
Our team can help evaluate your conveyor requirements and recommend a belt construction suited to your application.
Wire Mesh Belt Design Guide FAQ
What is the Wire Mesh Belt Design Guide
The Wire Mesh Belt Design Guide is a technical reference for engineers specifying woven wire conveyor belting specialty belting materials sprockets and conveyor system design.
Who should download the guide
The guide is intended for engineers, maintenance teams, operations managers, procurement specialists and manufacturers evaluating wire mesh belting for process conveying applications.
What belt styles are covered
The guide covers mesh belting styles including Balanced Weave, Double Balanced Weave, Conventional Weave, Cord Weave and Rod Reinforced belting. It also includes specialty belts such as Flat Flex, Ladder Link, Flat Wire and Flex Link.
Does the guide include belt measurement information
Yes. The guide includes measurement guidance for identifying mesh designation, belt width, belt length, wire gauge, spiral count, rod count and other specification details.
Can Wire Mesh Belt help with custom belt requirements
Yes. Wire Mesh Belt can review your application requirements and help determine the appropriate mesh style, material edge option, drive method and belt construction.
