Cost-Effective, Open-Design Belting

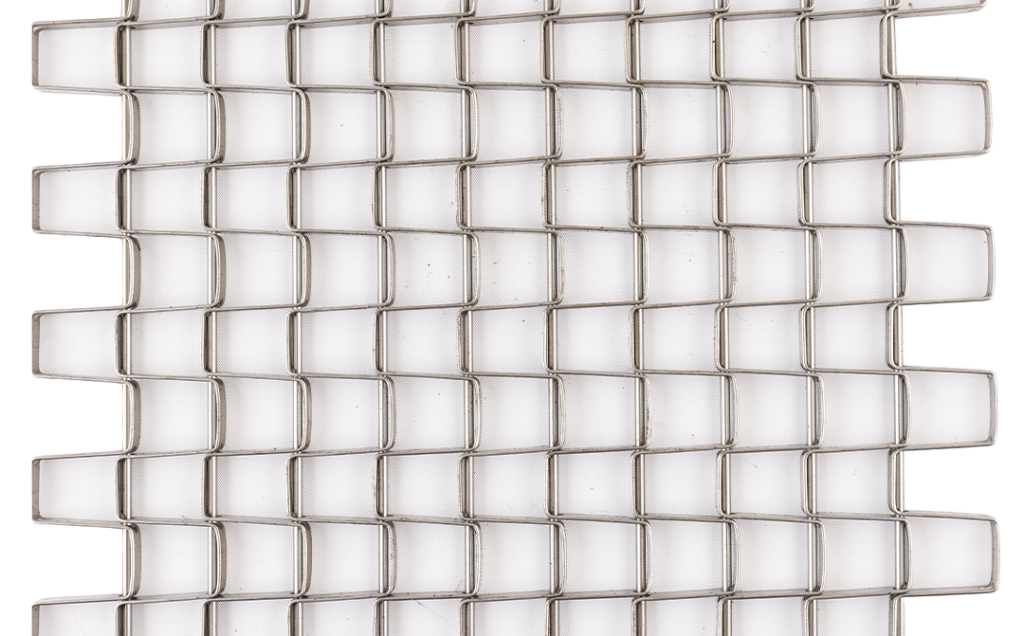

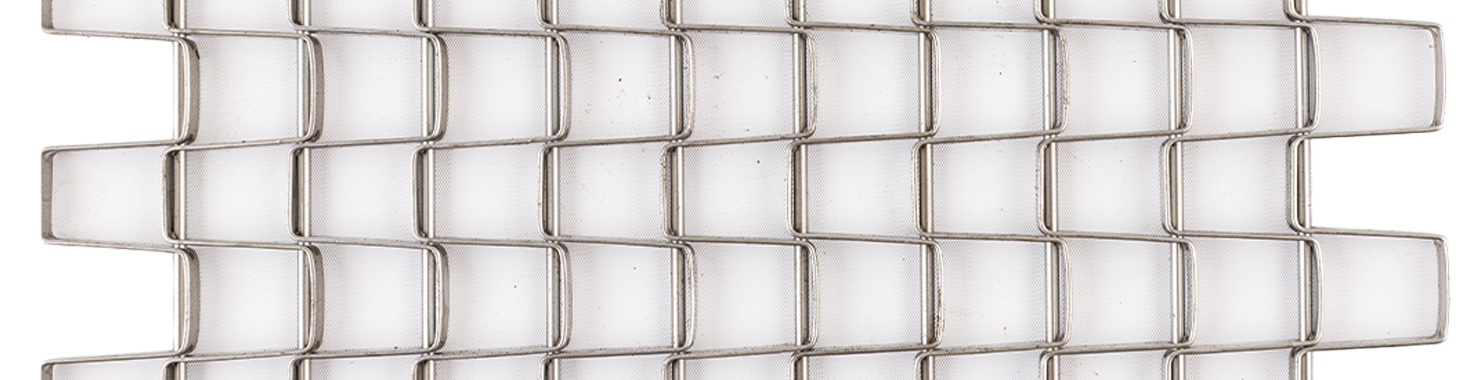

Flat Wire conveyor belts provide an open mesh for easy drainage and for the flow of air, gases
or liquids through the belt and around the product. This construction also enables easy belt
cleaning. Flat Wire is economical, offers long service life and provides smooth operation. It is
suitable for friction or sprocket drive.
When selecting a Flat Wire belt, consider the product size and the weight of the load. Standard
Duty is sufficient for most applications. Heavy Duty provides extra-long life, heavier load
capacity and improved performance in tougher conditions.
Available meshes are:
Standard Duty 1 x 1, 1/2 x 1, 1/2 x 1 Modified, 1/2 x 1/2
Heavy Duty 1 x 1, 1/2 x 1, 1/2 x 1 Modified, 1 x 1 radius, 1/2 x 1 radius
Flat Wire belts are available in galvanized, high carbon and stainless steel. A complete line of sprockets, shafts, flights and attachments are available.
Typical applications for Flat Wire belts include food processing, canning, baking, freezing, agricultural applications, farming, parts washing, drying, cleaning, painting, transferring, matting and drag mats.
